Create a Custom BIRT Report

Prerequisites:

To use Custom Reports your product registration key must include the Report (R) add-on module as an option.

This task requires:

  • Knowledge of BIRT designer.
  • BIRT must be installed using the proper version of Eclipse.exe available in the Customer Portal.
  • Java SE Development Kit 8u66 - Download jdk-8u66-windows-x64.exe
  • Access to the System page.
  • Reports Authority granted - Setup > System > Authority Levels
  • View Roster granted - Setup > Security > Authority



Note: BIRT contains four design templates: Assignment.rptdesign, Multiday.rptdesign, blank.rptdesign and Position_ClosureNotes.rptdesign. A blank template may be used for any of the canned reports such as the Accrual report, Audit report, and so on. Only the Assignment, Multiday, and Position Closure Notes reports have a predefined data source template. If you choose to customize the Audit report, as an example, you will see a blank template with Audit data sources available to further customize.

Follow the steps in the order shown below to create and run a single custom BIRT report:

  1. Launch the BIRT application. Select birt.exe (located in the birt designer after it is installed).

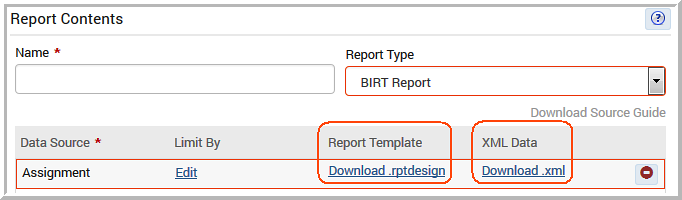

  2. Select BIRT Report in Report Type.
  3. Select Add to open the Report Data panel in Data Source.
  4. In the Criteria panel, select the desired standard report from the Data Source menu box. This is the .rptdesign data source template for your birt-designer and the report’s layout without any modifications.
  5. Use the Limit By settings to preset specific Limit By information in the selected data source report template. The options and limits presented vary and based on the selected data source report template. Additionally, using BIRT allows the logged in user to modify any limit presets supplied from the Reports area. This flexibility allows you to create a single report layout and permits the user to change the Limit By settings.
  6. Click OK to generate your new.rptdesign data source report template. This report template includes the data limitations previously specified, if any.
  7. Download the XML Data, ‘Download.xml’, and save this file in the ...resources > data folder of your birt designer. This xml file will render this report in the birt-designer using your database information when previewing this report in BIRT. The default path is: C:\birt-designer\birt\src\main\resources\data

    To view all of the field items available within the selected report(s) open the corresponding Download.xml file.

  8. In the Dynamic Dates panel enter your dates using DyD format. For example, TODAY, TODAY+7days, TODAY-1day. Doing so will auto populate the From and Through fields for this report when generated by users in the Reports area. Common practice, set both fields to TODAY. The user can change the From and Through parameters as desired in the Reports area.1 Some reports such as the Assignment Template and the Organization Structure reports do not limit by date, when these reports are selected a date is not required and the default DyD runs TODAY.
  9. Click Save to embed the default date in your .rptdesign template(s).
  10. Click Download.rpt.design to obtain the template of the selected report. This is the data source template you will need to further modify in BIRT. This is the layout of the report which includes any data limits and the dynamic dates supplied, if any. Save this file in the resources folder of your birt-designer. For example: C:\birt-designer\birt\src\main\resources

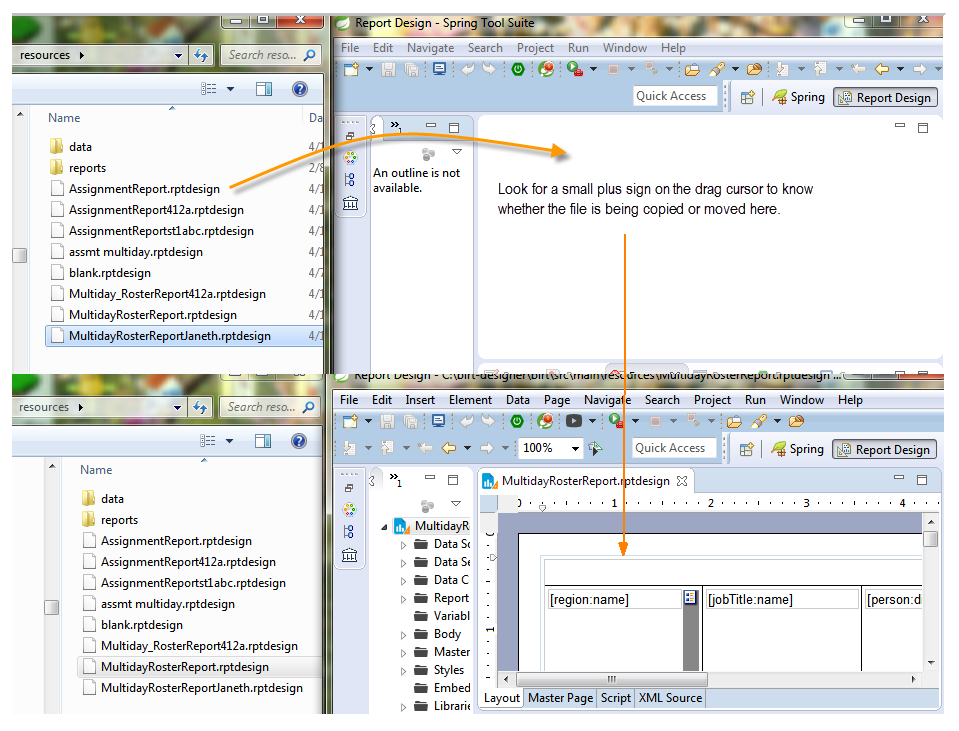

  11. Access your birt-designer, it should already be open per Step 1 of this task. Locate the file you want to modify in the resources folder. Drag the desired .rptdesignfile in to the birt-designer workspace and customize as desired. For example, you may add a header, format the font, add borders, highlight, add text, remove data, add new data by dragging and dropping new data sets into the file.

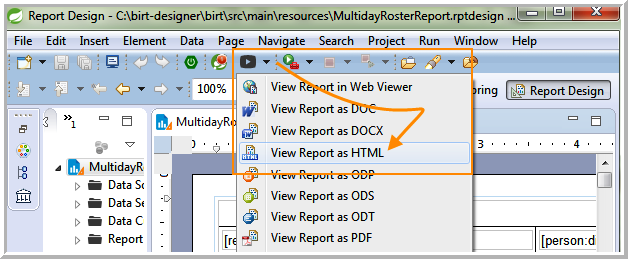

  13. Save your new template in the resources folder. To preview the report. Go to the tool bar, and click the Play button to show additional menu options and select View Report as HTML.

  14. Upload this new template in the Upload Custom Template area of the application.
  15. In Custom Template, select the check box next to Run/download report immediately to view and test your report upon upload. Optional step, however recommended.
  16. If you modify the template, save it, and upload it again. Repeat these steps until the report is ready.
  17. Click Save to save the most recent draft.
  18. Click Publish to share the report with others and make the report accessible in the Reports area.
